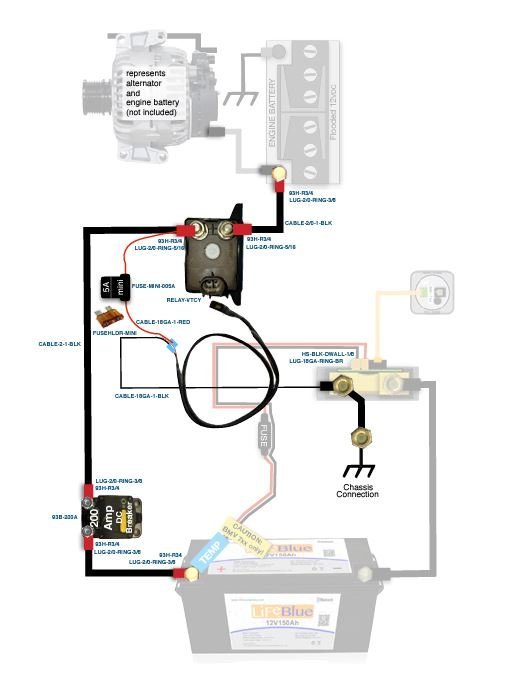

Enable alternator charging to a drop-in lithium battery bank. An optional boost feature lets your house batteries start your ignition when your starter battery is dead. Not for use with alternators rated less than 160A, Smart Alternators, or rigs with regenerative braking.
A Cyrix based alternator charger will only be able to bring a house battery bank up to about 80% State of Charge.
LED indicator meaning:OFF – No batteries detected
Rapid Flash – Only one battery detected
Slow Flash – Batteries detected, but not connected
Solid (or fluttering) – Batteries connected
When a Cyrix would close:
13,4 V < V < 13,7 V: 120 s
13,7 V < V < 13,9 V: 30 s
V > 13,9 V: 4 s
When a Cyrix would open:
13,3 V < V < 13,2 V: 10 s
V < 13,2 V: immediate
